Scott’s Hot Rods IFS Packages 8-6772-2MW4P5

€5,180.00

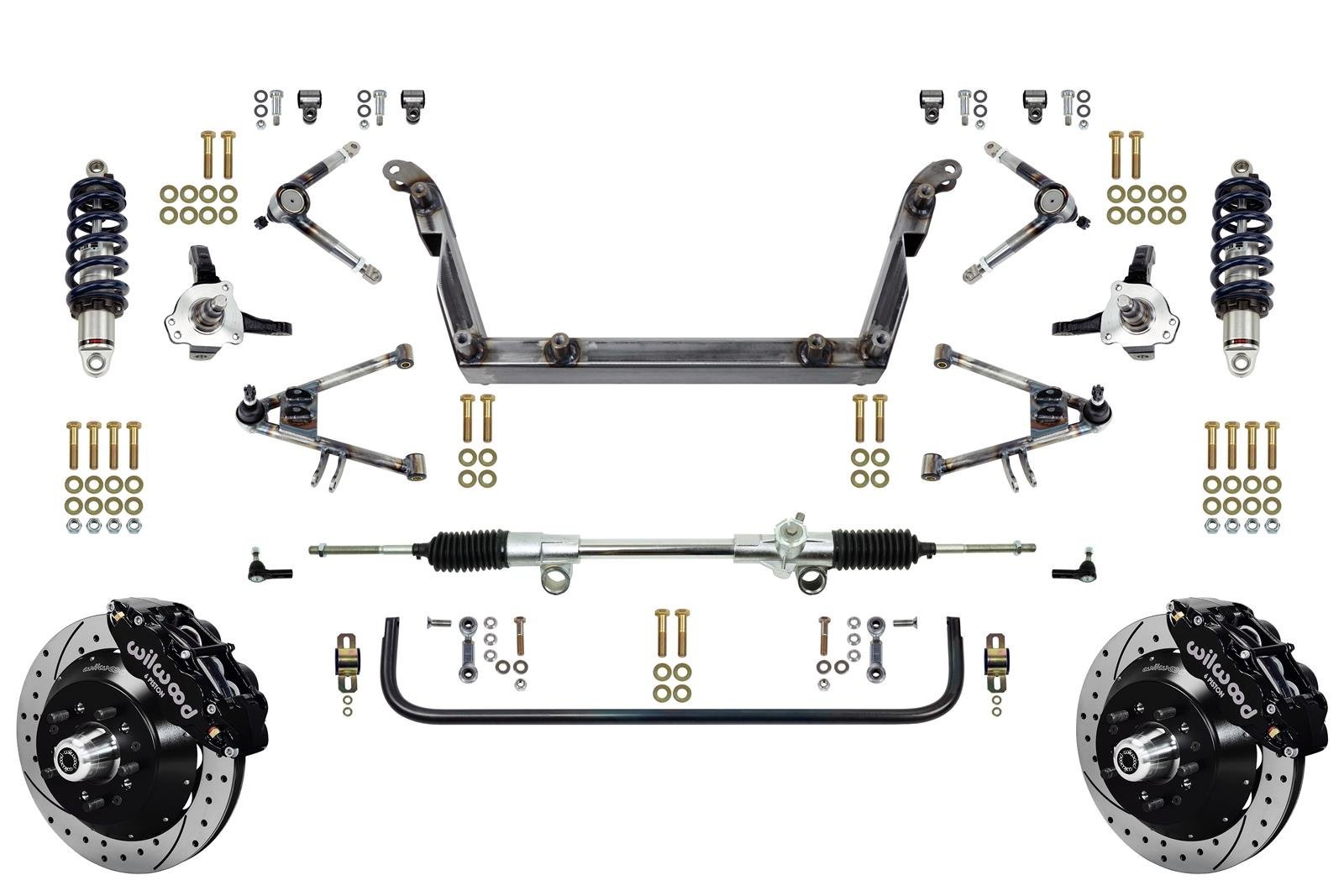

IFS Kit, ’67-’72 C10, Triple-Adjustable Coilovers, MILD, Manual Rack, Tubular A-Arms, Forged Spindles, 14″ Wilwood D/S P, Torsion, 5X5″

Overview

Name: Scott's Hot Rods IFS Packages 8-6772-2MW4P5 - marineengineservice.pl
Price: 5180.00 EUR
Availability: InStock

Brand: Scott’s Hotrods

Manufacturer’s Part Number: 8-6772-2MW4P5

Part Type: Front Suspension Packages

Product Line: Scott’s Hot Rods IFS Packages

Summit Racing Part Number: SXH-S10232

Wheel Bolt Pattern: 5 x 5 in.

Crossmember Included: Yes

Crossmember Material: Steel

Crossmember Color: Natural

Welding Required: Yes

Front Spindles Included: Yes

Spindle Type: 2 in. drop

Spindle Material: Forged steel

Spindle Finish: Natural

Upper Control Arms Included: Yes

Lower Control Arms Included: Yes

Control Arm Style: Tubular

Control Arm Material: Steel

Control Arm Color: Natural

Upper Ball Joints Included: Yes

Lower Ball Joints Included: Yes

Rack and Pinion Included: Yes

Steering Rack Type: Manual

Rack Material: Aluminum

Rack Color: Natural

Shocks Included: Yes

Shock Type: Triple adjustable coilover

Coilover Springs Included: Yes

Disc Brake Kit Included: Yes

Disc Brake Kit Type: Manual or power assist

Front Rotor Included: Yes

Front Rotor Style: Cross-drilled/Slotted surface

Front Rotor Construction: Vented

Front Rotor Diameter: 14.00 in./355.60mm

Front Caliper Included: Yes

Front Caliper Piston Quantity: Six

Front Caliper Material: Forged billet aluminum

Front Caliper Color: Polished

Brake Pads Included: Yes

Sway Bar Included: Yes

Sway Bar Diameter (in.): 1.000 in.

Center Link Included: No

King Pins Included: No

King Pin Bearings Included: No

Pitman Arm Included: No

Idler Arm Included: No

Tie Rod Sleeves Included: Yes

Inner Tie Rod Ends Included: Yes

Outer Tie Rod Ends Included: Yes

Quantity: Sold as a kit.

Notes: Features torsion spline sway bar and Ridetech coilovers.

Scott’s Hot Rods IFS Packages

Scott’s Hot Rods IFS packages are the ultimate improvement to the ride quality and handling of your classic vehicle. Starting with a ground-up, clean-sheet design, these independent front suspension kits are custom-fit to your specific chassis. Optimized steering and suspension geometry provide modern handling, while adding the convenience and feedback of rack-and-pinion steering. Designed and fabricated in-house ensures precise, accurate fitment. These IFS packages are available in a wide array of ride heights, suspension options, brake configurations, and even wheel bolt patterns!

Features include:

* Stock, mild, or low ride height configurations
* One-piece, boxed steel crossmember construction
* Frame/chassis-specific frame notches and reinforcement plates
* Fully adjustable, tubular upper and lower control arms
* Oversized serviceable ball joints
* Built-in anti-dive geometry
* Rack and pinion steering
* Forged steel spindles (stock or drop-height options)
* Available with Wilwood brake packages in multiple color choices
* Available air bag and multi-level coilover suspension options

Applications

Make: CHEVROLET

Model: C10 PICKUP

Submodel: BASE

Engine Type: L6

Beginning Year: 1967

Ending Year: 1972

Drivetrain: RWD
