Overview

RideTech 1967-70 Cougar Coilover Suspension Systems

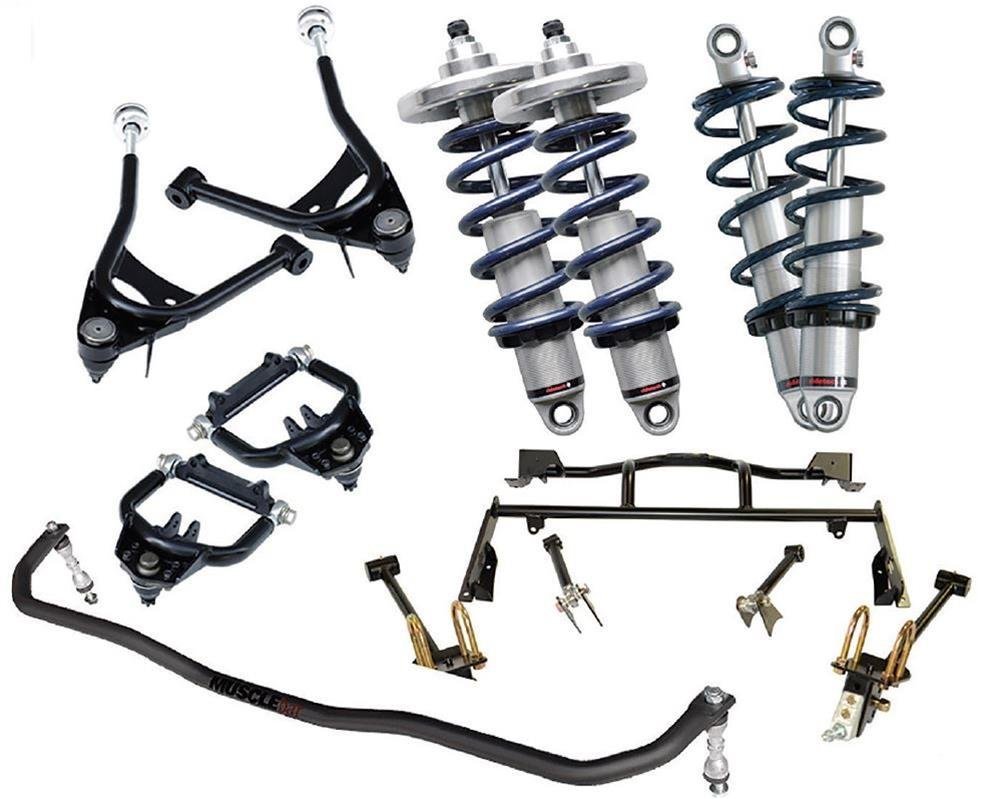

RideTech 1967-70 Cougar coilover suspension systems include everything you need to give your vintage Cougar modern drivability. These packages contain front upper and lower control arms, tall spindles, steering arms, inner and outer tie rods, a front MuscleBar, a bolt-in 4-link system, and four HQ Series coilovers for every corner of your vehicle.

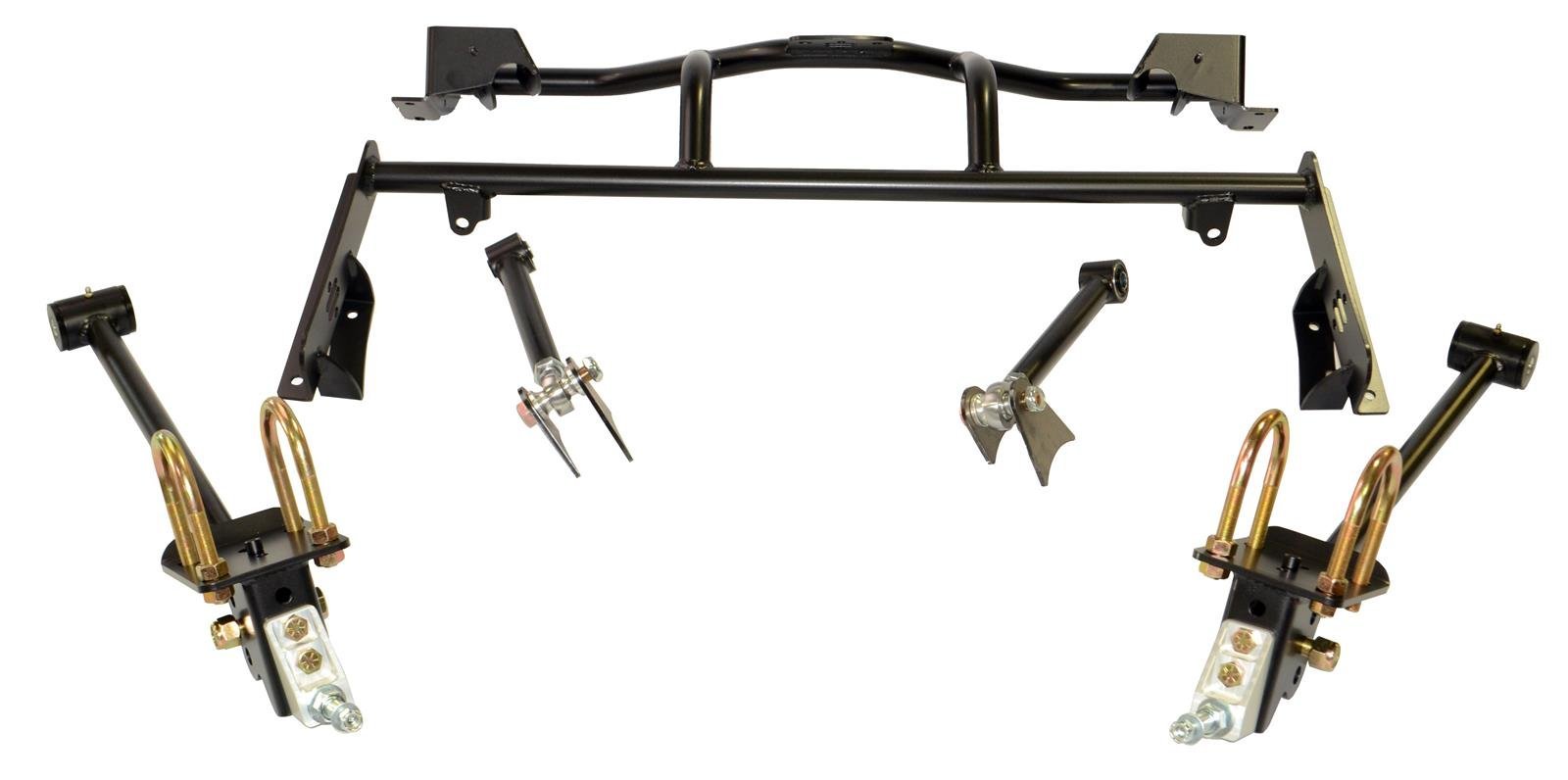

The bolt-on 4-link vastly improves traction, handling, and ride quality. Installation doesn’t require any major modifications to the floor pan and requires only minimal welding to the axle tube (works with mini tubs). The R-joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing. RideTech 1967-70 Cougar coilover suspension systems are as comfortable on the street as they are on the racetrack!

Features, items, and specs:

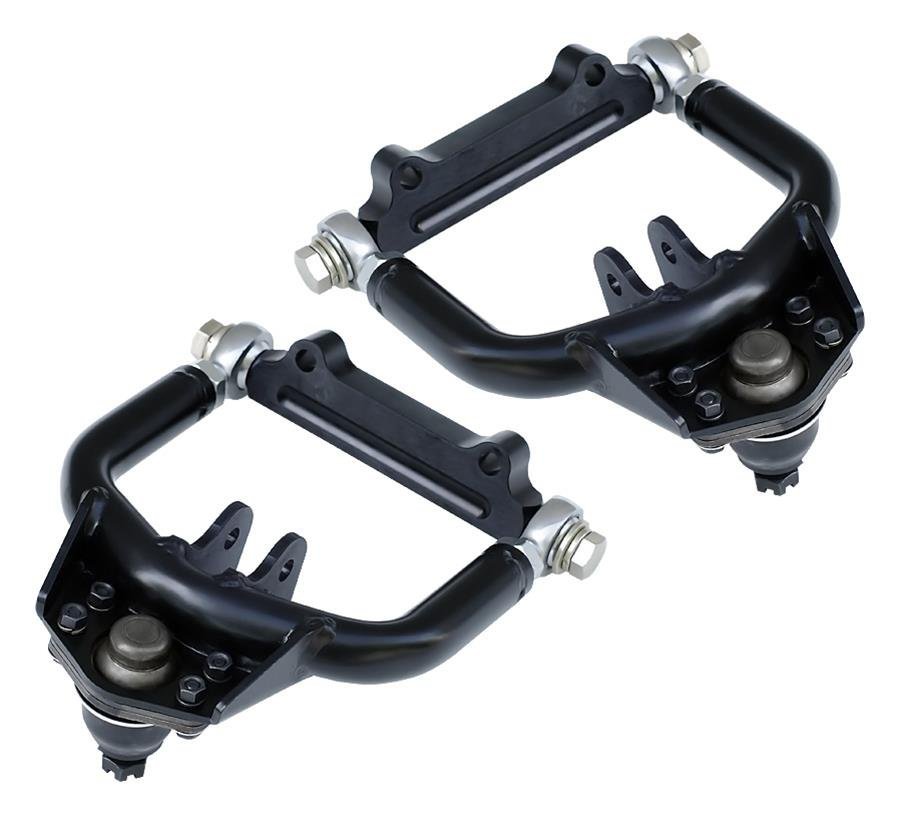

* Upper StrongArms feature corrected ball joint angles for the tall spindles
* Upper ball joint moved back to allow for additional caster setting (improves high-speed stability and steering feel)
* Billet cross shafts feature a lowered mounting point to increase camber gain and correct suspension geometry (they house a stout double-sheer lower shock mount)

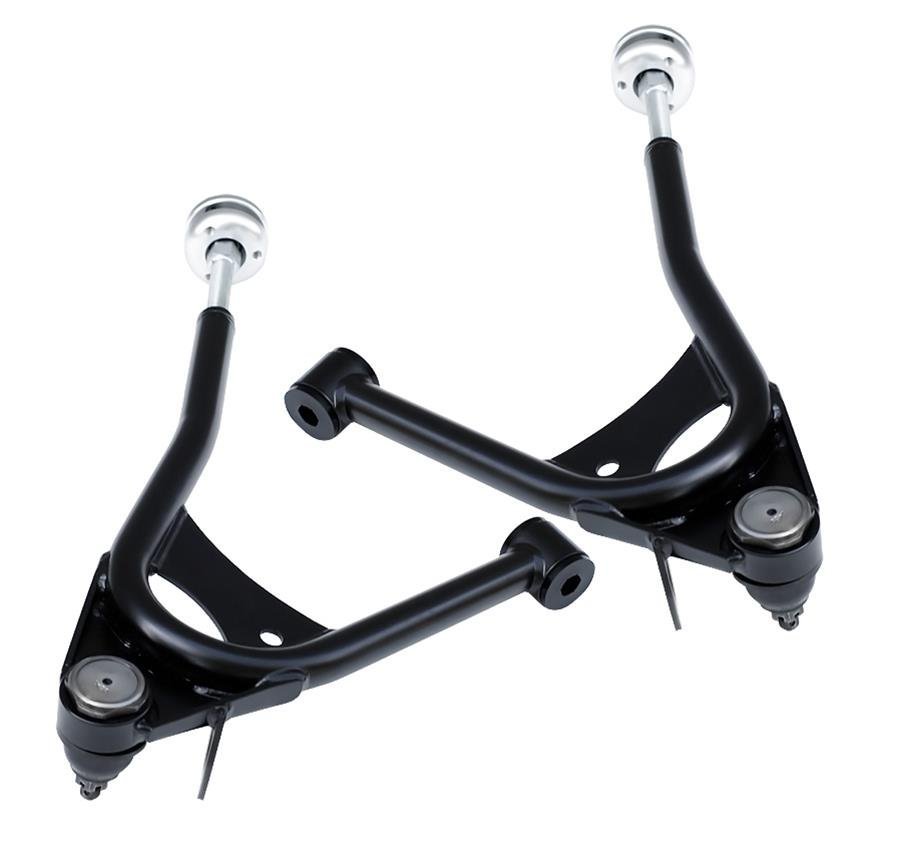

* Lower StrongArms feature a unique design that combines the control and strut rod into a stronger, more appealing one-piece design
* Additional caster designed into the arms
* Robust bearing in an aluminum housing at the front mount to replace the soft factory rubber units

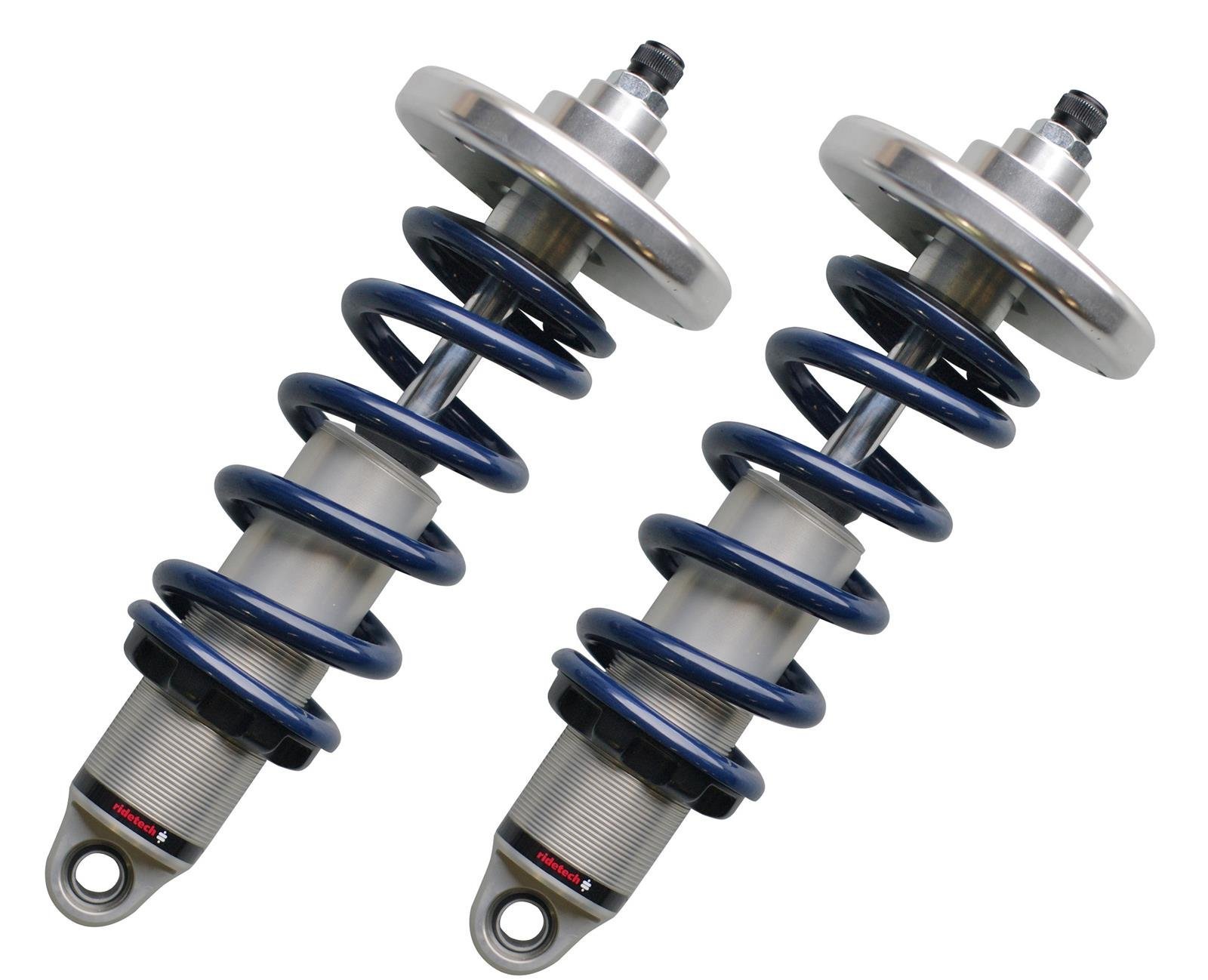

* HQ Series coilovers allow fine-tuning and deliver excellent ride quality and handling with a 1,000,0001 mile warranty (rebound knob located on top of front coilovers for underhood access)

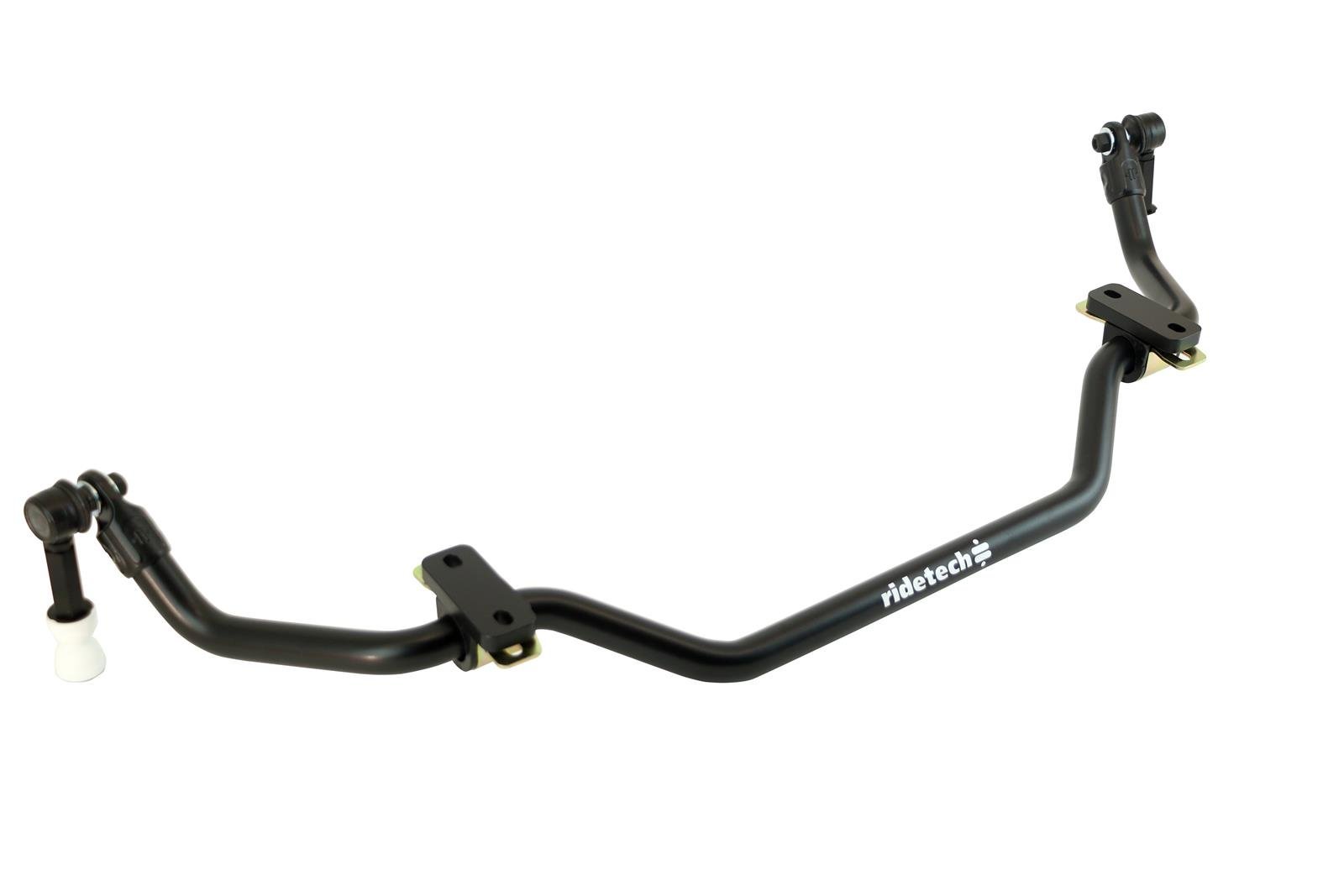

* Front MuscleBar helps reduce body roll and includes PosiLink endlinks that provide immediate engagement between chassis and control arms
