Name: BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines BP3505CTF - marineengineservice.pl
Price: 5678.00 EUR
Availability: InStock

Description

Overview

Brand: BluePrint Engines

Manufacturer’s Part Number: BP3505CTF

Part Type: Crate Engines

Product Line: BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines

Summit Racing Part Number: MLL-BP3505CTF

UPC: 00887753841186

Crate Engine Family: Chevy Small Block

Actual Engine Displacement: 5.7L/350

Crate Engine Cylinder Head Material: Aluminum

Engine Block Material: Cast iron

Advertised Compression Ratio: 9.2:1

Assembled: Yes

Engine Balance: Internal/External

Cam Style: Hydraulic roller, OE roller

Rear Main Seal Style: 1-piece

Intake Manifold Included: Yes

Intake Manifold Style: Fuel Injection

Cylinder Heads Included: Yes

Carburetor Included: No

Throttle Body Included: Yes

Distributor Included: Yes

Oil Pan Included: Yes

Valve Covers Included: Yes

Timing Cover Included: Yes

Water Pump Included: No

Harmonic Balancer Included: No

Flexplate Included: No

Flywheel Included: No

Air Cleaner Included: No

Spark Plugs Included: No

Spark Plug Wires Included: No

Computer Included: Yes

Wiring Harness Included: No

Supercharger Included: No

Remanufactured: No

Quantity: Sold individually.

Notes: This engine is not designed, nor intended to be used in any marine applications. Designed for pre-1976 street vehicles or any off-road vehicle. Engines installed in vehicles registered and normally operated outside of the United States carry no warranty.

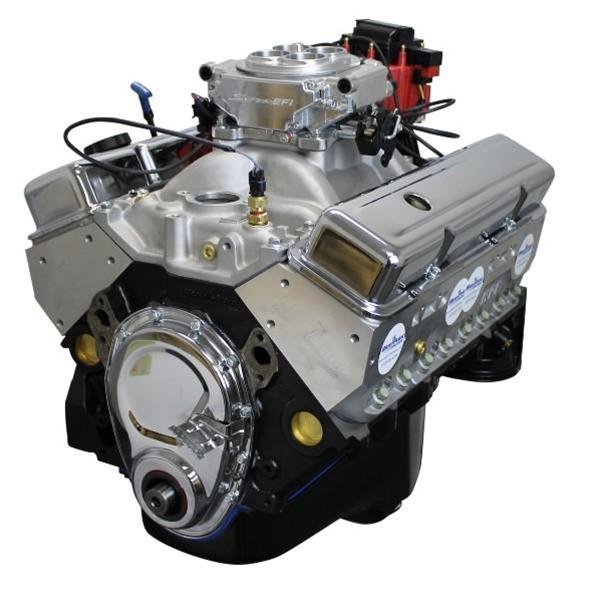

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block Crate Engines

BluePrint Engines GM 350 C.I.D. 390 HP Dressed Long Block crate engines are available with fuel injection—and base or deluxe carbureted models.

SPECIFICATIONS FOR ALL MODELS INCLUDE:

* HP and Torque: 390 hp / 410 lbs.-ft.
* Compression Ratio: 9.2:1
* Aluminum Heads
* Hydraulic Roller Cam
* Cast Iron Crankshaft
* Hypereutectic Pistons

* BLOCK:
NEW BluePrint Cast Iron Block
Manufactured and Machined in the USA
4-Bolt Main
4.000 in. Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Passenger Side Dipstick
Drilled and tapped for clutch linkage

* ROTATING ASSEMBLY:
Cast Iron Crankshaft
3.480 in. Stroke
Forged 5.700 in. connecting rods
Hypereutectic pistons
Internal Front/ External Rear engine balance

* CYLINDER HEADS:
BluePrint Aluminum Cylinder Heads
64cc chamber
2.02 in. intake/1.60 in. exhaust valves
195cc intake/75cc exhaust runners

* CAM SPECS:
Cam Type: Roller
.495 Intake .502 Exhaust
220 Intake / 224 Exhaust duration
@ .050 – 114 degree lobe separation

* IGNITION TIMING:
32 Degrees Total at 3,500 rpm

* ALSO INCLUDES:
Valve covers
Oil pan
Timing cover
Aluminum intake
HEI distributor
Dyno test results shipped with engine
30 month / 50,000 warranty

INCLUDED ONLY WITH FUEL INJECTION MODEL BP3505CTF:
* EFI system

INCLUDED ONLY WITH BASE CARBURETED MODEL BP3505CTC:
* 600 cfm carburetor

INCLUDED ONLY WITH DELUXE CARBURETED MODEL BP3505CTCD:
* Harmonic balancer
* Spark plugs
* Spark plug wires
* Standard Rotation Long Style Water Pump
* Waterneck and Thermostat
* Fuel Pump
* 600 cfm carburetor
