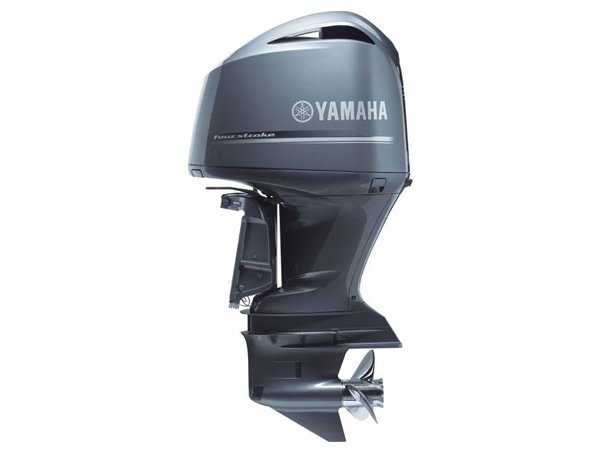

2017 Yamaha F350 Offshore UCC Outboard Motor
One hundred miles offshore, it’s truly man vs. nature. Corrosive saltwater. Pounding waves. Churning seas that can blow up out of nowhere. But there’s one thing nature wasn’t prepared for—the pure power and reliability of this machine, the Yamaha V8 F350. It provides all the thrust, torque and raw energy required for today’s larger offshore boats.
2017 Yamaha F350 Offshore UCC Outboard Motor
Power/Performance
- Mechanically Remote-Controlled Four Stroke V6 Outboard
- Narrow 60° 3.3L Block Design
- Variable Camshaft Timing
- Long Track Induction System
- Precision Multi-Point Fuel Injection
- 6 Independent Fuel Injectors
- 4 Large Radius Valves Per Cylinder
- High Intake Valve Lift
- Double Overhead Camshafts
- In-Bank™ Exhaust
- Exhaust Pressure Reduction System
Reliability/Durability
- TCI Microcomputer
- Electronic Single Throttle Valve (65mm)
- Direct Drive System
- Sacrificial Anodes
- Forged Pistons
- Water Cooled Rectifier/Regulator
- Water Separator
- Direct Ignition
- YDC-30 Aluminum Alloy
- 5-Step Anti-Corrosion Paint Process
- Top Mounted Electrical
- High Output Alternator
- SST Drive, Prop, Shift Shafts
- SST Steering Tube
Convenience/Control
- Command Link® System
- Power Trim & Tilt
- Freshwater Flush
- Counter Rotation “LF” Model
- Yamaha Diagnostic System
- Multi-Charge Monitoring System
- Single Belt Drive System
2017 Yamaha F350 Offshore UCC Outboard Motor
Year 2017
Manufacturer Yamaha Marine
Model Name F350 Offshore
Trim Name UCC
Generic Type (Primary) Four Stroke
Engine
Engine Type 60° V8 DOHC 32-valve
Engine Power 350hp at 5500 rpm (Prop Shaft)
Alternator (Output): 50 Amp (40A @ 1000rpm, Battery Charge: 33 amp)
Cylinders-Displacement (cc) 325.3ci (5330 cc)
Gear Ratio (Primary) (26:15) 1.73:1
Lubrication Wet sump
Ignition System: TCI, 32-bit ECM with integrated coil-in-cap ignition design
Fuel Type Induction System: EFI/VCT/DOHC
Oil Type (Recommended): Yamalube® 4M (See owner’s manual)
Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)
Fuel Type (Recommended Filtration): Yamaha 10-Micron Fuel/Water Separating Filter (external)
Capacities
Oil capacity 6.5L/6.3L w/without Filter
Spark Plug
Spark Plug LFR6A-11-00-000
Range
Note Full Throttle RPM Range: 5000 – 6000
Dimensions
Length Shaft: U = 30″
Bore 3.70 in. (94 mm)
Stroke 3.78 in. (96mm)
Weights
Dry Weight 30″ shaft / 354 kg (780 lbs)
Features
Exhaust In-Bank™ dual exhaust with Power Surge Chambers
Compression Ratio 9.6:1
Intake Design Single Throttle Valve
Steering Angle Maximun: 32° from center, either direction
Note Gear Shift: Forward, Neutral, Reverse
Note Ethanol Blend Limit: 10% Maximum
Features C.A.R.B. Rating: 3 Star
Cooling Water/Thermostatic Control
Note Mounting Centers: 28.6″
Features Degree of Tilt: 67° | Degree of Trim: -3° through +16°
Starter System: Electric
Warranty
Warranty 3-Year Pleasure, 3-Year Government, 1-Year Commercial
